Fluid And Lube Handling
Graco 25M329 Pulse™ Fluid Management Electronic Oil / Anti-Freeze Meter 3/4" NPT
$1,794.00
11-25M329
Click to see additional Options / Models / Accessories Available
Options
Click to view California Proposition 65 warning
The dispense meter is durable and easy to use, giving technicians everything they need at their fingertips. PINs and other data can be entered in moments via a larger, more intuitive display. NFC tags can be used for immediate PIN entry and faster access to work orders.
Features
- Faster PIN entry with built-in NFC reader and simple, efficient controls.
- Large high-contrast display for low and bright-light conditions.
- Communicates dispense information wirelessly with Hub.
- All meters come standard with your choice of a rigid or flexible fluid extension. The meter featured includes a rigid extension (see additional options below) and automatic flush-mount nozzle design that re-seats after dispense to prevent contamination.
- Long battery life, requires four standard AA batteries
- 5 year warranty. See manufacturer’s website for details.
- Flow Range*: 0.25 to 18 gpm (0.9 to 68 lpm) *Tested in 10W motor oil. Flow rates vary with fluid pressure, temperature and viscosity.
- Maximum Working Pressure: 1,500 psi (103.4 bar)
- Units of Measure (factory set to quarts): Pints, quarts, gallons, liters
- Inlet: 3/4 in NPT
- Operating Temperature Range: 4°F to 158°F (-16°C to 70°C)
- Wetted Parts: Aluminum, stainless steel, PBT, nitrile rubber, zinc-plated carbon steel, nickel-plated carbon steel
Technical
| Weight approx. | 6.4 | lbs |
| Dimensions (L x W x H) | 16 x 5.5 x 7 | inch |
Options

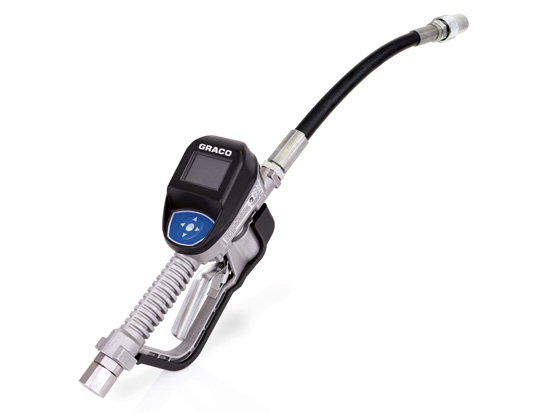

| 11-25M330 | Graco 25M330 Pulse™ Fluid Management Electronic Oil / Anti-Freeze Meter 3/4" NPT - Flexible Extension | $1,794.00 | Add to cart |
