Vehicle Lifts

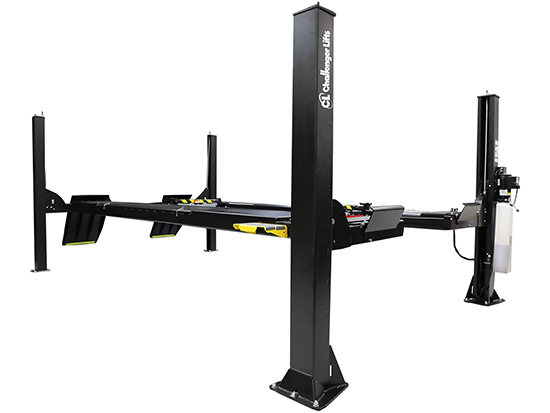

15,000 lbs Alignment Rack 4-Post Open Front
$26,692.00
67-AR4115EAO
Click to see additional Options / Models / Accessories Available
Options
Designed with productivity and safety in mind, our improved 15,000 lb 4-Post Lift would be a great addition to any shop floor. With several configurations available, you’re sure to find the lift to meet your needs.
Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck, and even medium-sized vans. All while boosting workplace safety with our open front design, assisting technicians moving around a vehicle’s frame.
Features
- Alignment kit includes: rolling jacks, internal airline system, & stainless steel turn plates
- 22” wide runways.
- Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
- Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry’s latest imaging alignment systems.
- 17 locking positions with improved lock design.
Technical
| Drive-over height | 7 | inch |
| Load carrying capacity | 15,000 | lbs |
| Oil fill capacity | 5.5 | gallons |
| Effective height | 78 | inch |
| Motor output | 2.21 | kW |
| Lifting-piston diameter | 3.94 | inch |
| Lifting height, wheel jack | 10 | inch |
| Lifting height | 71 | inch |
| Lifting/lowering time approx. | 85/21 | s |
| Weight approx. | 5190 | lbs |
| Color | textured black | |
| Track length | 199.3 | inch |
| Track width | 22.4 | inch |
| Power supply | 230V/60/19 | V/Hz/A |
| Operating pressure | 2200 | bar |
| Dimensions (L x W x H) carrier | 208/29/56 | inch |
| Dimensions (L x W x H) | 250/142/101 | inch |
Options
| 67-AR4115EAX | 15,000 lbs Alignment Rack 4-Post Closed Front | $23,871.00 | Add to cart |
| 67-AR4115XAO | 15,000 lbs Alignment Rack 4-Post Open Front Extended Length | $27,061.00 | Add to cart |
| 67-AR4115XAX | 15,000 lbs Alignment Rack 4-Post Closed Front Extended Length | $24,374.00 | Add to cart |
