Wheel Alignment

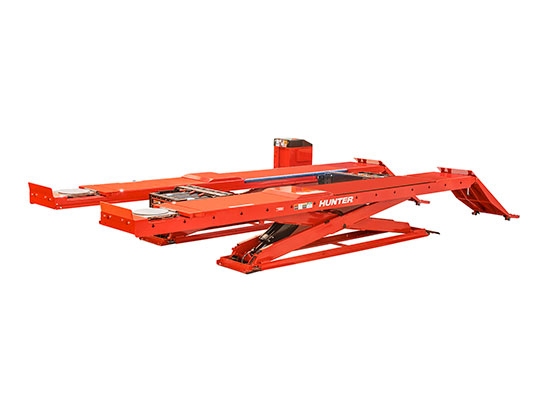

Scissor Lift, surface mount, 14,000lb capacity, 195" 2WA WB, (2) 9,000lb Swing Jacks, stainless turnplates
Login for pricing
1-RX14KL
The RX14KL and RX16KL handle up to 195” two-wheel alignment wheelbases. This longer wheelbase adds more medium duty vehicle capability. More importantly, there is more runway to perform rolling compensation on crew-cab pickups and larger vans.
Features
- 195” 2-wheel alignment wheelbase! (+13” for RX14, +17” for RX16).
- Utilizes same base, legs, and console so service and install changes very little.
- • New adjustable turnplate pockets give super long 88”-168” 4-wheel alignment service range. o Most user will position turnplate in the front pocket and leave them there 95% of the time. When a short vehicle needs alignment, just move the turnplates back
- Max. Vehicle Weight 16,000 lbs. (7200 kg).
- Max. Wheelbase General Service 201 in. (5105 mm).
- ) Two-Wheel Alignment 195 in. (4953 mm) Four-Wheel Alignment 168 in. (4267 mm).
- Alignment Height All lock positions Min. Four-Wheel Alignment 88 in. (2235 mm).
- Lifting Speed 1 speed, 60 seconds Lowering Speed 2 speed, 25 seconds.
Technical
| ALI Certified | Yes | |
| Above ground or inground | Above | |
| Power supply | 208-240V, 3 amp, 50/60 Hz, 1 ph (NEMA 20 amp plug, L6-20P) | V/Hz/A |
| Weight approx. | 6438 | lbs |
| Dimensions (L x W x H) | 217x35x53 | inch |
Options
| 1-RX14KLBLK | Black, Scissor Lift, surface mount, 14,000lb capacity, 195" 2WA WB, (2) 9,000lb Swing Jacks, stainless turnplates | Login for special pricing | Add to cart |
| 1-RX14KLIS | Scissor Lift, surface mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 14,000lb capacity, 192" 2WA WB | Login for special pricing | Add to cart |
| 1-RX14KLISBLK | Black, Scissor Lift, surface mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 14,000lb capacity, 192" | Login for special pricing | Add to cart |
| 1-RX14KLISPRB | Black, Harsh Duty Scissor Lift, surface mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 14,000lb cap | Login for special pricing | Add to cart |
| 1-RX14KLISPRR | Harsh Duty Scissor Lift, surface mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 14,000lb capacity, | Login for special pricing | Add to cart |
| 1-RX14KLPS | Scissor Lift, surface mount, FIA (Standard wireless connectivity), PowerSlide, 14,000lb capacity, 195" 2WA WB, (2) 9,000lb Swing | Login for special pricing | Add to cart |
| 1-RX14KLPSBLK | Black, Scissor Lift, surface mount, FIA (Standard wireless connectivity), PowerSlide, 14,000lb capacity, 195" 2WA WB, (2) 9,000l | Login for special pricing | Add to cart |
| 1-RX14KLPSPRB | Black, Harsh Duty Scissor Lift, surface mount, FIA (Standard wireless connectivity), PowerSlide, 14,000lb capacity, 195" 2WA WB, | Login for special pricing | Add to cart |
| 1-RX14KLPSPRR | Harsh Duty Scissor Lift, surface mount, FIA (Standard wireless connectivity), PowerSlide, 14,000lb capacity, 195" 2WA WB, (2) 9, | Login for special pricing | Add to cart |
Accessories
| 1-133-84-1 | 9,000-lb. Capacity Swing Air Jack | Login for pricing | Add to cart |
| 1-147-113-1-PPP | Long RX Approach Ramp Extension (Two Required) | Login for pricing | Add to cart |
| 1-20-2189-1BLK | Stage 2 RX Approach Ramps - 50" long extended approach ramps for all RX models. Black | Login for pricing | Add to cart |
| 1-20-2497-1 | RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications | Login for pricing | Add to cart |
| 1-20-2497-1BLK | Black, RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications | Login for pricing | Add to cart |
| 1-20-2532-1 | 14" Convertible Turnplates Kit, Stainless Steel | Login for pricing | Add to cart |
| 1-20-2533-1 | 14" Convertible Turnplates Kit - Low Friction, Stainless Steel | Login for pricing | Add to cart |
| 1-20-2736-1BLK | Black RX10, 12A, 16 Flush Conversion Kit. Ramps and extenders to convert a surface mount rack to flush mount. | Login for pricing | Add to cart |
| 1-20-3113-1 | RX ramp extension kit – 20-3113-1 (two included) Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12 | Login for pricing | Add to cart |
| 1-20-3113-1BLK | Black, RX ramp extension kit – 20-3113-1 (two included) Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12 | Login for pricing | Add to cart |
| 1-20-3438-1 | RX light kit for K model racks. | Login for pricing | Add to cart |

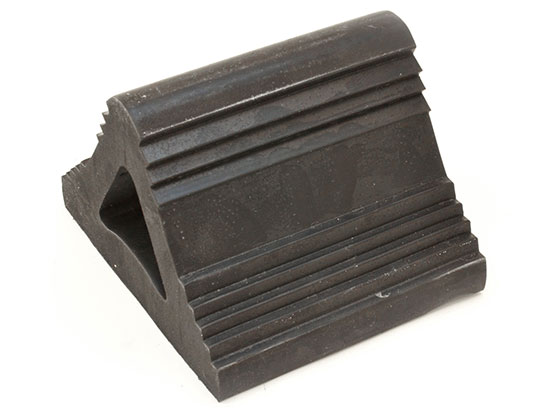

| 1-22-525-2 | Angle - Rubber Wheel Chock | Login for pricing | Add to cart |
| 1-PACKAGING | Wood Packaging to protect Lift Racks during shipping (required for shipments to Alaska/Hawaii only) | Login for pricing | Add to cart |
