BendPak 10APX Tall-Rise BiMetric 10,000-lb Capacity 2-Post Lift
$5,407.00
Click to view California Proposition 65 warning
BendPak's all-new AP series of two-post lifts feature a revolutionary design that factors the best qualities of today's two-post lift types into a completely new concept in car lift engineering. The result is a lift unlike any other two-post lift on the market, purposefully designed for extreme use, high loads and operator safety and efficiency.
Our 10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and BI-METRIC™ arms to suit virtually every vehicle lifting requirement – symmetric or asymmetric. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity.
AUTOMATIC ARM RESTRAINT SYSTEM PREVENTS UNPLANNED MOVEMENT
Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arms shifting during vehicle loading and service. However, until now, these systems had a difficult time withstanding the excessive forces applied to them when vehicles suddenly and unexpectedly shifted on the support pads or adapters of the far-reaching swing arms; typically due to improper loading or when heavy drivetrain components are added or removed from elevated vehicles causing an unanticipated transference in the center of balance.
Features

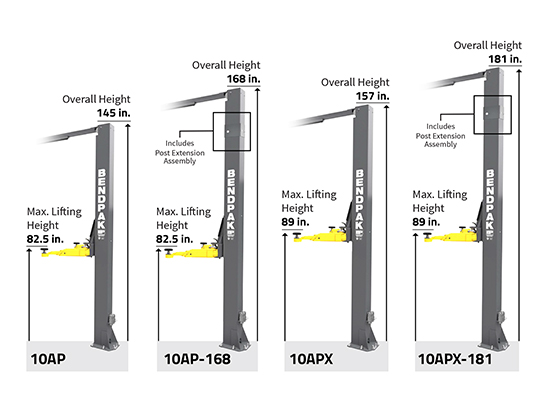

- 157" Overall Height.
- Standard Low-Profile, Triple-Telescoping Arms - Front and Rear.
- Bi-Metric™ Arms Easily Accommodate Both Symmetric and Asymmetric Lifting.
- Patented ASARS Arm Restraints Secure Lift Arms with all-new 360-Degree Locks - Tested to Over 2000-Pounds of Lateral Force.
- Extra Tall 79.5 Inch Lifting Height - Before Adapters.
- ALI Certified.
Technical
| Load carrying capacity | 10,000 | lbs |
| Lifting height | 79.5 | inch |
| Lifting/lowering time approx. | 45 | s |
| Color | Gray | |
| Power supply | 220V/60Hz/1-Phase | V/Hz/A |
| Dimensions (L x W x H) | 162 x 24 x 28 | inch |
Accessories
| 798-5215757 | Low Adapter Pin - Set of 4 | $146.00 | Add to cart |
| 798-5215758 | Medium Adapter Pin - Set of 4 | $148.00 | Add to cart |
| 798-5215759 | Tall Adapter Pin - Set of 4 | $183.00 | Add to cart |
| 798-5215760 | Lift Pad Assembly - Set of 4 - Non-Telescoping | $217.00 | Add to cart |
| 798-5215761 | Frame Cradle Pad - Set of 4 | $189.00 | Add to cart |
| 798-5215762 | Screw Pad Assembly (Replacement) - Set of 4 | $246.00 | Add to cart |
| 798-5215763 | Steel Lift Pads - Set of 4 | $160.00 | Add to cart |
| 798-5215848 | Wide Frame Cradle Pad - PAIR | $231.00 | Add to cart |
