Collision Repair

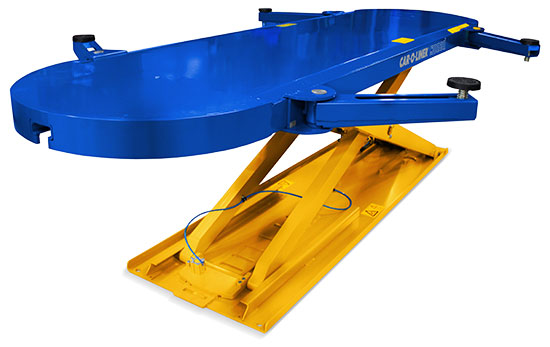

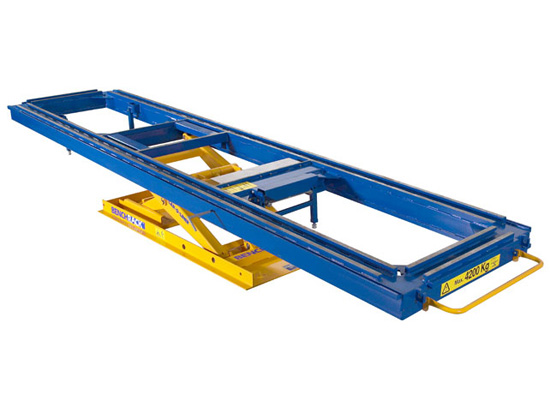

Speed™ is our most compact lift-based repair system suitable for vehicles with cosmetic body work. The Speed 3T alignment benches are designed to meet the repair requirements of heavier, longer vehicles with the power to lift 6,000 pounds, giving workshops a greater scope of collision damage repair opportunity. Easy to install and easy to use, this versatile lift platform allows you to make efficient use of space in your shop. Because there are no ramps or posts around the lift, accessibility is excellent, improving ergonomics to repair vehicles faster. Speed™ 3T is ideal for a range of different tasks -- such as sheet metal work, assembly, disassembly, door adjustments, sanding, masking and other preparations for painting. All this, and with the added capacity for light pulls using the optional draw aligner. The Speed 3T Plus allows pulling from both ends of the platform. Choose from several Car-O-Tronic™ measuring systems and you'll get precise vehicle information.
Features
- Designed for cosmetic damage repair and other light service and repair work.
- Small footprint makes it the perfect addition to any repair or service shop.
- The entire job can be completed using just one bench, shortening cycle times.
- Vehicles can be easily driven over the platform due to the low profile height of 4". Quick set-up times.
- 5-ton pulling capacity with the optional drawer aligner. It is adjustable and self-locking and offers 360 degrees of multi-angle pulling.
- Flexible installation either above ground or recessed into the floor.
- Removable lifting arm
- Scissor Structure – in high strength materials to make 3 ton lifting easy
- Strong and Secure – Large cylinder shaft and super strong pivot pin provide safe, secure lifting of heavier vehicles.
- Maximum vehicle weight 3 Tons/6,600 lbs.
- Low profile platform, from 4.1 inches minimum to 63 inches maximum height.
- Suitable for most passenger cars and light transport vehicles.
Technical
| Cable length | 157 feet | inch |
| Max Weight Capacity | 6,600 lbs. | Lbs |
| Weight approx. | 1322 lbs. | lbs |
| Power supply | 220V, 1 ph, 50/60Hz | V/Hz/A |
| Dimensions (L x W x H) | 99X30x4 inches | inch |
