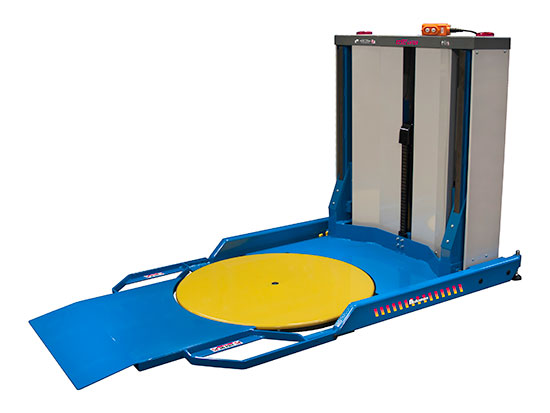

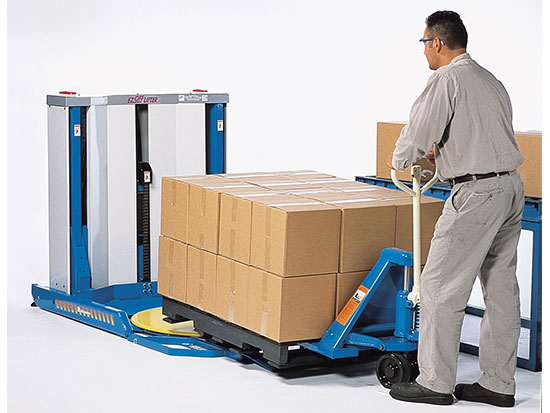

Pallet Truck Accessible Work Positioners. Bishamon EZ Off Lifter pallet positioners are the ultimate ergonomic solution for loading or unloading pallets in applications when loads are transported with a pallet truck. These revolutionary products provide the answer for maintaining the load at a convenient working height. They also provide easy pallet rotation and near side loading to eliminate excessive lifting, bending, and stretching. They are electro-hydraulic operated and available in a free-standing front access model and a bolt-down model with ramp access from three positions.



Features

• Feet-clear safety circuit automatically stops the platform descent at 9 in. above the floor preventing unintentional foot entrapment under the platform or pallet.
• Safety Warning Lights and Alarm alert the operator before the platform lowers from the intermediate safety stop.
• Platform Safety Covers guard pinch points around the mast and mast rollers.
• Chain Cover guards pinch points around the upper chain wheel.
• Hydraulic power unit with unitized control valves and reservoir.
• 1/2 HP 115 V electric motor.
• 40.50 in. diameter rotating disk supported by 32 precision ball bearings.
• Automatic Platform Lock prevents platform rotation in the lowered position.
• Hinged integrated approach ramp.
• Integrated lifting tabs and platform catches for transporting with a forklift.
• Rear leveling feet.
• Durable powder coated finish.



Accessories

204-Foot Control

Foot Control

$250.00

Add to cart
