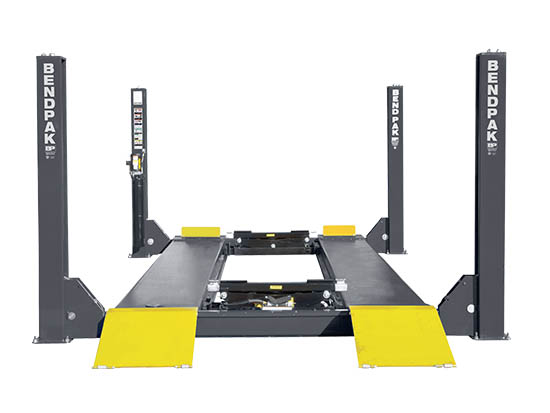

Vehicle Lifts
Click to view California Proposition 65 warning
A four-post lift requires a serious level of engineering. To reduce strain on the columns and provide ample lifting security at all times, BendPak uses the most durable stainless steel lifting cables, as well as the single hydraulic cylinder, to provide an incredibly powerful and smooth lift operation. With proper use, this car lift will work as well in 10 years as it did on day one. The HD-9 offers our largest variety in any BendPak four-post lift weight class because most vehicles serviced by most shops weigh less than 9,000 lbs. If you need to lift heavier vehicles, we have larger-capacity models that keep you covered. For many of you, however, the HD-9 Series will hit the sweet spot for powerful lifting, compact design and product value. Browse our 9K section to see all of what you can get on these models. Dual-hub cable sheaves are more expensive to manufacture, but we'd rather send you home with a quality product than a cheap one. They're necessary to prevent axles, sheaves, and cables from burning out before they should. Our philosophy is that your lift should be the last thing you worry about first thing in the morning. Unique service technicians require servicing positions; with the HD-9, you can safely lock your four-post lift at varied heights, so you're never crouching or reaching uncomfortably to perform auto maintenance. If you're raising the lift for parking purposes, that variation is going to come in handy, depending on how you stack your vehicles. Each four-post lift comes with four lifting cables made from superior-grade stainless steel. Each individual cable is rated to handle 14,400 lbs. This makes their combined rating over 640% of the total capacity. These cables are hidden within the post columns for both the safety and overall streamlined look of the lift. No one wants to see a cable dangling on the outisde of a lift.
Features
- 9,000-Lb. Maximum Lifting Capacity
- CE Approved and Certified. Meets or Exceeds the Standards Prescribed by European Standard EN-1493
- Freestanding Design
- Runways Accommodate Narrow and Standard Vehicles
- Runways Include Rail-Kit for Optional Accessories
- Internal Anti-Sway Slider Blocks in Each Column
- Single Hydraulic Cylinder Mounted Underneath Runway
- Perfect for Parking, Storage and Service
- Multi-Position Safety Locks in Each Column
- Shipping Dimensions - 166"(L) x 22"(W) x 28"(H)
Technical
| Lifting height | 75 | inch |
| Lifting/lowering time approx. | 45 | s |
| Weight approx. | 1,616 | lbs |
| Color | Grey | |
| Power supply | 208-230V / 60 Hz / 1 Ph | V/Hz/A |
| Dimensions (L x W x H) | 200.5 x 110.25 x 88 | inch |
| Load carrying capacity | 9,000 | lbs |
