Vehicle Lifts

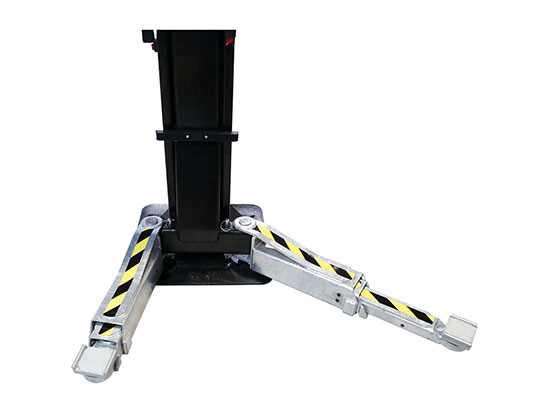

Versymmetric 2-Post Adjustable Width Lift with 3' Column Height Extensions
$7,394.00
67-CL10AV3-3
Understanding that one size does not fit all, we’ve made adjustable height and width options, ensuring the CL10AV3 can adapt to your shop’s unique requirements. Furthermore, a wide selection of accessories means that no matter what challenges you face, the CL10V3 is equipped to tackle them, making it the definitive choice for any forward-thinking shop.
Features
- 10,000 lb Adjustable Width Lift with optional 3' column height extensions for taller vehicles.
- Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential.
- Oversized 5" diameter pulley and heavy duty 5/16" cable reduces stress on equalization system and increases cable life.
- 48" elongated carriage design decreases load on bearing.
- Single point mechanical lock release system with jacket coated protection and no lock cable pulleys, and double clutch release bar protects cable from stretching while disengaging both column locks simultaneously.
- Padded overhead shut off system prevents vehicle damage from being raised too high.
- Fully gusseted base plate design reduces column deflection.
- Rubber door guards provide added security against vehicle door damage.
Technical
| Load carrying capacity | 10000 | lbs |
| Lifting height | 74.125 | inch |
| Lifting/lowering time approx. | 48 | s |
| Color | Red Blue or Black |
