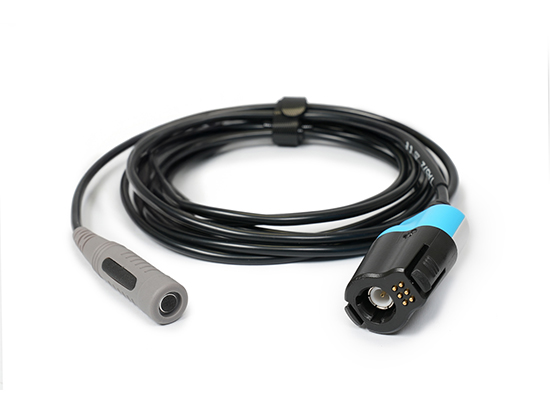

The Advanced NVH Diagnostic kit from Pico Technology is a cost-effective answer to the many NVH problems facing technicians today.

This Kit will allow users to measure vibrations on 3 axes (X, Y and Z) or optionally, to measure vibration or sound on a single axis at four different locations on a vehicle. The software provides a real-time diagnosis to the technician, in the form of either: a bar graph, a frequency chart, a 3D frequency chart, RPM order, road speed view or a time domain view.

The ability to start the recording before a road test and playback and analyze the recording back in the shop, ensures that the driver's attention remains on the road. Plus, recordings can be saved to a computer to simplify sharing or additional analysis.

Typical Applications:

• Cabin vibrations at speed
• Engine vibrations throughout the entire RPM range
• Clutch shudder or vibration
• Transmission and bearing whine
• Auxiliary drive noise
• Brake shudder
• Steering vibrations



Technical

Weight approx.	8 lbs	lbs
Power supply	Lithium Battery	V/Hz/A
Dimensions (L x W x H)	16 x 13 x 5	inch
