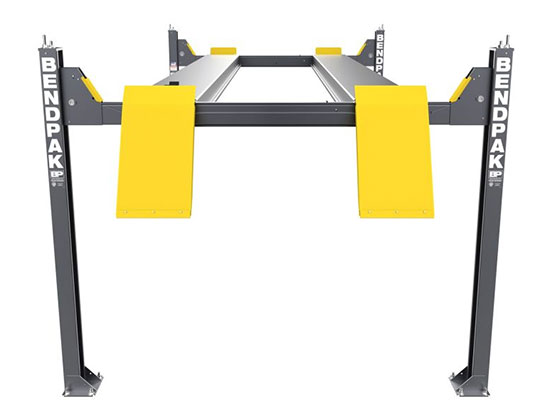

14,000-lb. Capacity / High-Rise Four-Post Lift / Extended Runways.



Features

• ALI Certified.
• 14,000-lb. lifting capacity.
• Extended 227.5-inch runways for large vehicles.
• Higher maximum lifting height of 89.5 inches.
• Extended approach ramps suitable for low-clearance vehicles.
• Single hydraulic cylinder beneath the runway.
• Fully enclosed lifting cables, safety locks, and sheaves.
• Internal anti-sway slider blocks in each column.
• Pneumatic push-button safety release.
• Heavy-duty 1/2-inch aircraft cables with 1.75-inch roller axles.
• Oversized 10.5-inch diameter cable sheaves to reduce cable fatigue.
• Multi-position safety locks in each column.



Technical

Dimensions (L x W x H)	272 x 130 x 104	inch
Dimensions (L x W x H) foundation	239 x 22 x 29	inch
Operating pressure	2600 psi	bar
Power supply	220 VAC / 60 Hz / 1 Ph	V/Hz/A
Track width	20	inch
Track length	227.5	inch
Color	Gunmetal Grey
Lifting/lowering time approx.	90	s
Lifting height	89.5 in	inch
Motor output	220 VAC, 50/60 Hz, 1Ph 3HP 11A Typ.	kW
Load carrying capacity	14,000 lbs	lbs
