Features

• 7,000-lbs. maximum lifting capacity.
• High lift with short runways.
• Electric / hydraulic power system.
• Single hydraulic cylinder mounted underneath runway.
• Internal anti-sway slider blocks in each column.

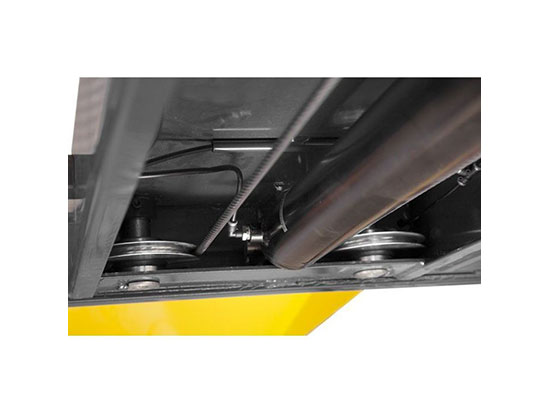

• Oversized self-lubricating cable rollers.
• High-speed lifting.
• Features heavy-duty 3/8" aircraft cable.
• Rugged 1.25" roller axles.
• Multi-position safety locks in each column.
• Adjustable lock ladders.
• Push-button pneumatic safety release.



Technical

Dimensions (L x W x H)	200.5 x 100.25 ±.125 x 100	inch
Operating pressure	3,200 PSI	bar
Power supply	208-230 VAC, 60 Hz	V/Hz/A
Track width	19	inch
Track length	158.25	inch
Color	Gunmetal Grey
Lifting/lowering time approx.	90	s
Lifting height	87	inch
Motor output	208-230 VAC, 60 Hz, 1 Ph, 15 Amps	kW
Load carrying capacity	7,000	lbs
