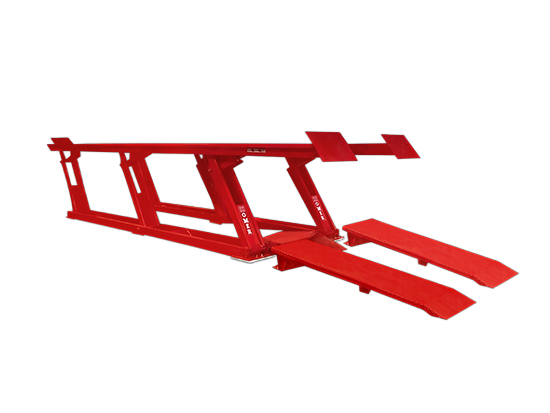

OMER IPPO 45 - RED - 10K, Full Rise Double Scissor Lift - for SERVICE-Onerall length - Surface Mount.

Includes (4) rubber frame engaging pads and center hose cover. Does not include cover from lift to its console.



Features

• Compact design - rugged construction. Small footprint with best in class weight capacity.
• Versatility and ease-of-use - Ideal for small, compact cars to light duty trucks.
• Volumetric control stays level all the time thanks to single cylinder with dual chamber.
• Low Maintenance - less downtime. No electronic sensors and no equalization valve.
• Built for safety - 21 locking positions.
• Unobstructed access - Open front and rear construction with no tire bars or torsion rods.
• Low profile approach ramps for surface mount or available in flush mount.
• Retractable pull decks to 82.7".
• Can be hot dipped galvanized.



Technical

Dimensions (L x W x H)	160.2" x 81.9" x 79.5" raised	inch
Dimensions (L x W x H) foundation	160.2" x 81.9" x 8.3"	inch
Power supply	230 V- 60hz- 1PH- 23 amps	V/Hz/A
Track width	23.8" each runway	inch
Track length	59.4" tp 82.7"	inch
Color	Red
Weight approx.	2850	lbs
Lifting/lowering time approx.	55 sec raised, 30 sec lowered	s
Lifting height	79.5"	inch
Load carrying capacity	10,000	lbs
