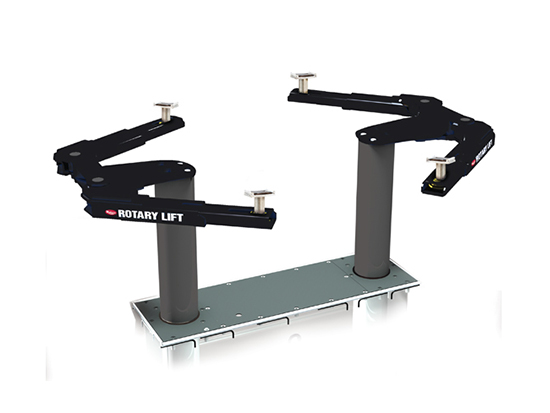

10,000 lb. capacity, two-post asymmetric lift; flip-up adapters; Shockwave equipped, which includes DC power.
Features
- Raising and lowering speeds twice as fast as most lifts.
- Spotline laser vehicle spotting assist allows vehicle to be centered in bay on first try.
- DC power from 24v car batteries, built-in charger, 110v connection only.
- Asymmetric column rotation maximizes door opening clearance for passenger cars.
- Three-position flip-up adapters.
- Single-piece column design with channel for bearings maximizes bearing contact area.
- Slider bearings are lubrication- and maintenance-free.
- High-pressure cylinders in each column provide maximum lifting force.
- User-friendly arm restraints disengage when arms are fully lowered.
- Overhead switch bar stops lift when contacted, preventing possible vehicle damage.
Technical
| Drive-over height | 4-3/4 | inch |
| Load carrying capacity | 10,000 | lbs |
| Oil fill capacity | 5 | gallons |
| Lifting height | 78-1/4 | inch |
| Lifting/lowering time approx. | 19 | s |
| Weight approx. | 1,505 | lbs |
| Color | Blue | |
| Power supply | 110|60|20 | V/Hz/A |
| Dimensions (L x W x H) | 101-3/4 x 137-1/2 x 142-3/4 | inch |
