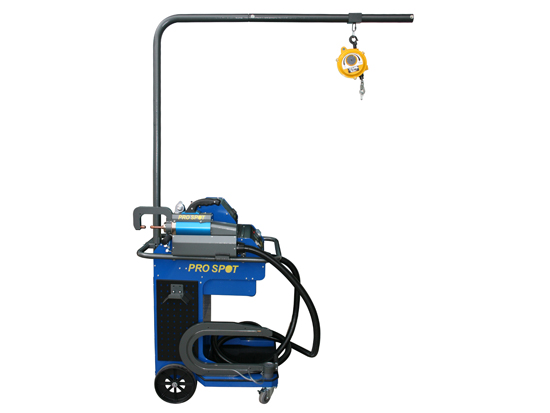

The i5 features a new medium frequency trans-gun capable of delivering over 13,000A withover 1,000 lbs (450dANO) of squeeze pressure.
The i5 is designed to handle all new ultra high strength steels including Boron, etc. The operator can choose between two different modes AUTO and MANUAL for the two sided spot welding. In the AUTO mode the i5 measures the thickness of the metals automatically using the latest optical technology. The i5 then senses the metals to be welded from a pre-delivered current to determine the type of metal. Based on the thickness and resistance feedback information the i5 delivers the correct weld power every time regardless of type of metal or thickness.
The i5 features a 5 gal.(20L) radiator looped cooling system all the way to the weld caps. The weld gun is carefully designed with ease of use in mind. Extremely easy to change welding arms based on the same system of the very popular i4. The most important feature with the spot gun is its double-acting feature. Unlike any other trans-gun on the market the i5 can spread the electrodes wide open with a push of a button never leaving the hands from its positions. That not only saves time but also assures the operator to have to let go of the holding position of its hands to manually have to loosen and move arms manually.
The i5 is driven by the latest in processing technology. The high resolution TOUCH screen display allows for easy navigation and intuitive welder operation. The OEM section of the software features over 3000 OEM repair screens with weld data and repair recommendations from the car manufacturers. Data can be uploaded and downloaded via USB. Single sided welding is available with the easy to attach cable adapter system. All single sided weld modes such as Pro Pull dent pulling, Spot hammer, Bolt and Nut welding, Carbon Shrink, Contact Shrink, Rivet welding Stitch welding and single side welding.
The Single Sided Welding System (186-PS-SS1) offers a quick change between 2-sided and 1-sided welding. It comes with Single-side welding accessories including Washer Welding, Nail Welding, Moulding Clip Rivet Welding, Bolt & Nut Welding, Stitch Welding, Spot Hammer Dent Pulling and more.
The i5 comes pre-programmed with 60 Single-Sided programs.
Features
- SMART AUTO WELD: Based on the tickness and resistance feedback information, the i5 automatically delivers the correct weld power every time regardless of the type of metal, thickness, or corrosion protection between the metals.
- DOUBLE-ACTING SPOT GUN: Unlike other guns on the market, the i5's Double-Acting Spot Gun features wide-spreading, self-aligning electrodes, which spread at the touch of a button. Operators never need to move their hands from their original positions.
- WATER-COOLED: Water-cooled Weld Arms to the tips.
- USER-FRIENDLY CONTROL PANEL: All new user-friendly, high-resolution Touch Screen. Features include multiple languages, login and data recording, temperature control, and more.
- CONVENIENT STORAGE: Cabinet and Storage designed with practicality in mind. A drawer under the front panel for small accessories, and an additional storage space below for large accessories like weld arms and cables.
- SINGLE-SIDED WELDING: Quickly change between 2-Sided and Single-Sided Welding. Comes with several single-sided weld programs and accessories (optional).
- OEM section of the software allows over 3,000 OEM repair screens.
- Data uploadable and downloadable via USB.
- Handles all new ultra-strength steels.
- Latest technology.
- Protective Weld Cover.
Technical
| Welding cable length | 192 | inch |
| Cable length | 360 | inch |
| Weight approx. | 314 | lbs |
| Power supply | 208-240 / 50-60 / 60 | V/Hz/A |
| Dimensions (L x W x H) | 28 x 34 x 50 | inch |
