Collision Repair
Designed for maximum output, this semi-downdraft paint spray booth features Garmat's patented integrated mechanical built into the cabin. The unique filter tower design draws air to the bottom, simulating a downdraft air flow. This pit-less design saves valuable shop space, and lowers installation costs. Can be customized for any building constraint.
Features

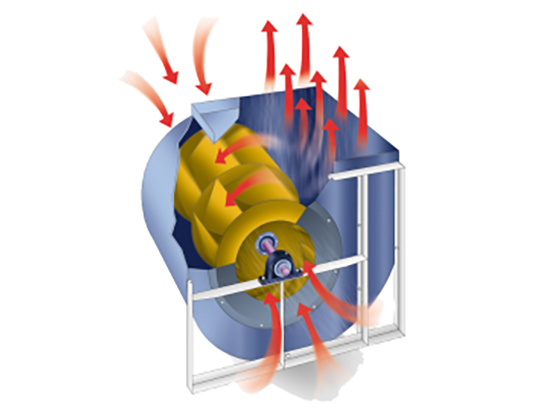

- Garmat's exclusive Dual Inlet Reverse Incline Centrifugal Fans on exhaust and two Dual Inlet Forward Curve Centrifugal Fans on intake, providing the highest performance and best energy efficiency.
- Horizontally-mounted light fixtures placed above and below the belt line for optimal and virtually shadow-free illumination.
- Interior accessible four-tube light fixtures complete with T8 5000k color-corrected fluorescent tubes.
- Standard heated AMU features 80% recycle heated air in bake cycle for greater energy efficiency.
- ETL-listed cabin constructed of dual skin white powder-coated galvanized steel, fully insulated with solid horizontally-installed interlocking wall panels.
- ETL-listed industrial PLC control panel and mechanical, designed by Garmat to maximize efficiency.
- 6H Compliant.
- 15,000 CFM / Intake two 5 hp / Exhaust 10 hp.
- Stainless Steel Direct Fired Burner: 1.0 MBTU.
- Customizable for building constraints
- VFDs and Soft Starts available.
