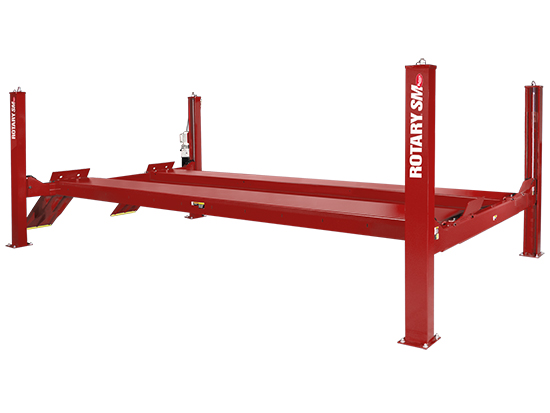

Our four-post surface lifts accommodate a wide range of vehicles. Routine vehicle servicing and maintenance with a Rotary standard four-post lift is just the ticket. Move beyond the basics and the flexibility becomes apparent as you pick from a list of optional equipment. Lube work is made easy when a rolling drain pan with splash guard, drain valve and dust cap is added. Bolt-on alignment kits include a turning radius gauge kit (front), slip plate kit (rear only on SM18 series) and all necessary hardware.



Features

• 14,000, 18,000 and 30,000 lbs. capacities available.
• 14,000 lbs. capacity lifts are available in open front or rear design allowing for greater access to under vehicle components and rolling jack usage.
• Patented Sentinel Lock system (US Patent No. 6,446,757) slack cable guide arm that stays "on guard" to manage the lock latch.
• 14,000 and 18,000 lbs. capacity lifts come with an air filter/regulator/lubricator to extend the life of your lift and air powered tools.
• Adjustable latch bars ensure the runways are level when resting on the latch bars at any of the locking positions.
• Available in multiple runway lengths for various wheelbases.
• Come with non-skid surface allows sure grip of tires and a "sure foot" for technicians standing on the lift.
• Non-welded runway for strength, durability and to provide a smooth track for rolling jacks.
• Cylinder located under the runway to eliminate any opportunity for vehicle door or mirror damage.
• Third party ALI certified tested by ETL to meet or exceed strict ANSI standards and go through rigorous safety tests such as a 1.5 times rated capacity load test, lock test by cutting the cables and deformation tests.



Technical

Load carrying capacity	14,000	lbs
Lifting/lowering time approx.	65	s
Power supply	208-230/1 phase	V/Hz/A
Dimensions (L x W x H)	264 x 139	inch



Options

39-SM14EL2	14,000 lb. four-post lift, 273 inches long	$10,292.00	Add to cart
39-SM14L	14,000 lb. four-post lift, 249 inches long	$9,668.00	Add to cart
39-SM18	18,000 lb. four-post lift, 275-3/16 inches long	$15,592.00	Add to cart
39-SM30-EL3	30,000 lb. four-post lift, 380-1/8 inches long	$34,411.00	Add to cart
39-SM30L	30,000 lb. four-post lift, 344-1/8 inches long	$31,763.00	Add to cart
39-SM30S	30,000 lb. four-post lift, 308-1/8 inches long	$29,115.00	Add to cart
39-SMO14EL2	14,000 lb. four-post lift, 284 inches long	$12,909.00	Add to cart
