Compressed Air Systems

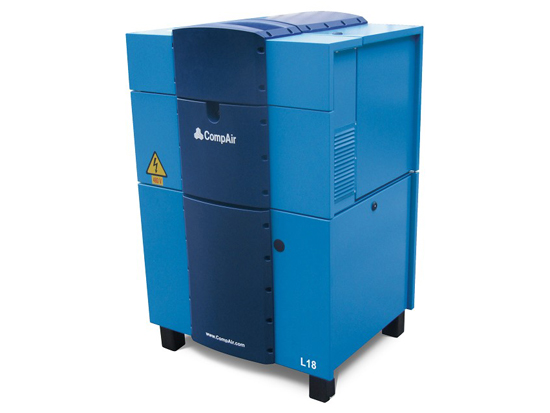

Champion 25HP, Rotary Screw Fixed Speed Compressor, 100 PSIG, 208-230/460/3/60
$16,711.00
27-L18AC100TV
The L Series oil-injected rotary screw compressors provide a range that combines high performance, low operating costs and reliability with ease of installation and servicing. Industries both large and small rely on Champion rotary screw compressors for a constant supply of high-quality compressed air.
Specifications and Features:
25HP
Pressure at 100 psig
110.9 CFM at 100 psig
Fixed Speed
Base Mounted
2-Year Warranty
Factory Filled with CompLube 8000
Features
- Compact design which gives you a small footprint.
- TEFC High Efficiency Motor.
- Quiet Enclosure to reduce sound levels.
- Wye/Delta Starter.
- Delcos Microprocessor based control system.
- Automatic belt tensioning system.
Technical
| Weight approx. | 796 | lbs |
| Power supply | 208-230, 460 / 60 / 3ph | V/Hz/A |
| Dimensions (L x W x H) | 31 x 28 x 47 | inch |
