Compressed Air Systems
CompAir 20HP AirStation, Rotary Screw Fixed Speed Compressor, 190 PSIG, 208-230/460/3/60, 120 Gallon Tank, With Dryer
$18,764.00
27-L15AC190TVAS12
The L Series oil-injected rotary screw compressors provide a range that combines high performance, low operating costs and reliability with ease of installation and servicing. Industries both large and small rely on CompAir rotary screw compressors for a constant supply of high-quality compressed air.
Specifications and Features:
20HP
Pressure at 190 PSIG
63.1 CFM at 190 PSIG
120 Gallon Horizontal Tank Mount

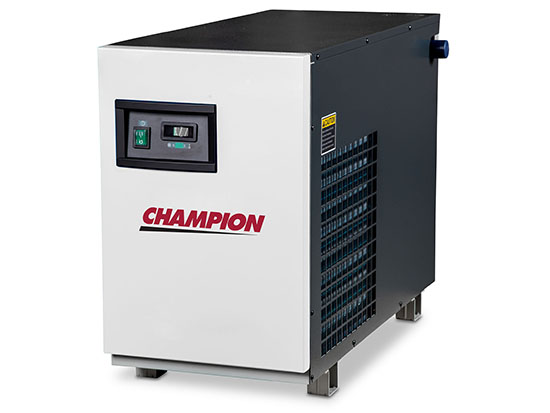

Mounted CNC100 Refrigerated Dryer
2-Year Warranty
Factory Filled with CompLube 8000
Features
- Compact design which gives you a small footprint.
- TEFC High Efficiency Motor.
- Quiet Enclosure to reduce sound levels.
- Wye/Delta Starter.
- Delcos Microprocessor based control system.
- Automatic belt tensioning system.
Technical
| Weight approx. | 1,505 | lbs |
| Power supply | 208-230, 460 / 60 / 3ph | V/Hz/A |
| Dimensions (L x W x H) | 80 x 32 x 74 | inch |
