Car Wash and Detail Systems

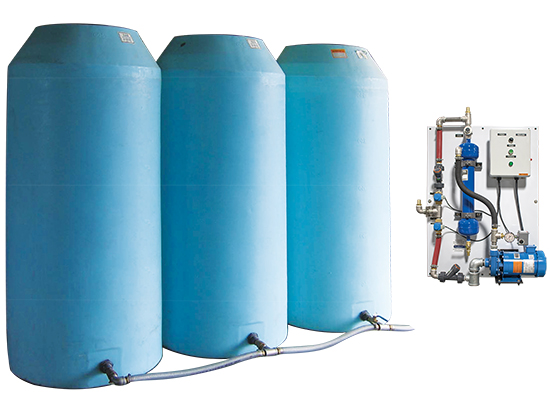

Broadway Equipment’s Hydro 70 water reclaim system is designed for automatic car washes that handle up to 100 cars per day. This system is perfect for existing locations where below ground tanks are not possible. The unit is wall mounted for space efficiency in the car wash bay area. The mounting board is pre-wired and pre-plumbed for easy installation. Water is plumbed from the catch basin to the above ground tanks included with the system. The cyclonic separation used to clean the water removes particles down to 70 microns in size and produces approximately 35 gallons per minute. The system significantly reduces water consumption and lowers operating costs, perfect for end users looking to lower up front costs enforced by local municipalities.
Features
- Reuse up to 90% of the wash used in the wash cycle.
- Motor starter and controls.
- 2hp pump and motor.
- Cyclone separator.
- 1/2hp sump pump.
Technical
| Power supply | 460 / 20 3 phase | V/Hz/A |
| Dimensions (L x W x H) | 48 x 240 x 108 | inch |
| Weight approx. | 1,200 | lbs |
