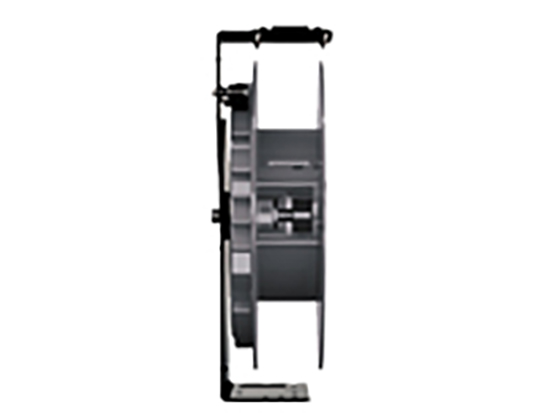

Signature Series Evolution - Air/Water Reel - Low Pressure - 50' x 1/2" ID hose
$535.00
44-2140-011
Click to view California Proposition 65 warning
Lightweight but extremely rugged: steel pedestal and arm, and dual ball-bearings. The Evolution combines design, performance, and reliability with the right features and benefits for today's customers. All Evolution series reels have a narrow and lightweight design; includes hose, hose stop, and a 2.5" connecting hose.
- Superb corrosion resistance
- Superior structural design and stability
- Fully ported shaft and pressure balanced swivel
- High-quality, long-life power spring
- Spool mounted on dual ball-bearings
- Rectangular hose guide outlet with rollers
- Multi-Positioning outlet arm
Features
- Air and Water Low Pressure 300 psi (21 bar) for delivery of air, water, and Anti-freeze.
- Eight-position latching mechanism.
- Fluid compatibility for multiple applications.
- Easy maintenance and service.
- Easy on-site tension adjustment.
- Easy installation mounting and accessories.
- Fluid inlet - 1/2" NPT (F) swivel.
- Fluid outlet - 1/2" NPT (F) swivel.
- Outlet thread - 1/2" NPT (M).
- Wetted materials - Nickle plated steel and Buna-N™.
Technical
| Weight approx. | 50 | lbs |
| Power supply | Air | V/Hz/A |
| Dimensions (L x W x H) | 18 x 6-1/2 x 20 | inch |
