Brake Service

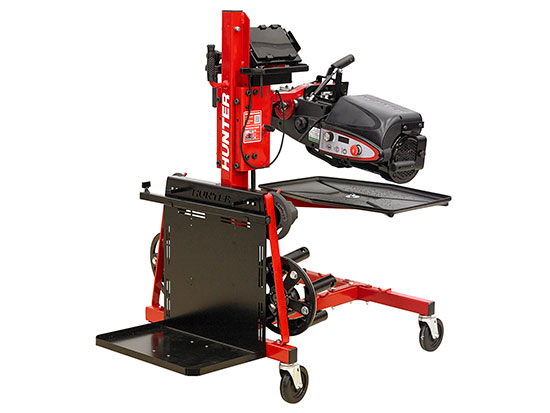

ACE Basic Lathe - Elite on-car lathe with Automatic Compensation
Login for pricing
1-ACE00
Click to see additional Options / Models / Accessories Available
Options
Click to view California Proposition 65 warning
Automatic Compensation maximizes speed and accuracy. Now with Touchscreen Interface! Enhances speed and accuracy by exactly calculating the position of the compensation plates to eliminate guesswork. Included Trolley and Standard Accessories.
Features
- Automatic Compensation - Directly determines compensation and eliminates "Wanderin". Consistent compensation times average under 12 seconds.
- Touchscreen Interface - Intuitive touchscreen interface simplifies lathe operation, On-board training videos, adaptor and vehicle specification lookup.
- Anti-Chatter Technology - Oscillates machining speed to prevent buildup of vibration(chatter). No bands or other devices required.
- Varible-Speed Drive System - Avoid differential lock ups by cutting at a lower speed, no need to disassemble drive train.
- Convenient Controls - Control lathe operation via the on-board control panel or tablet interface, Controls are always upright and easy to read on both sides.
- Bit Minder - Track cutting bit usage to ensure cut quality and minimize expense.
- Precise Machining - Unique, stepped cutting pattern prevents radial "push-Out" effect, True one cut pass, No sanding needed.
- Reverse Rotation - Service more vehicles with significant driveline drag, turn axles that can only be turned in reverse.
- Powerful Motor and Drive - 1.5 hp motor provides class leading speed and torque. Service vehicles without pulling driveshafts.
Technical
| Power Connection | 115/230 | V |
| Weight approx. | 302 | lbs |
| Frequency | 50-60 | Hz |
| Power supply | 115VAC, single phase 60 Hz, 15 amp, NEMA L5-15P (230V, 50-60 Hz optional)" | V/Hz/A |
| Dimensions (L x W x H) | 53 x 32 x 20 | inch |
