Vehicle Lifts
Sprinter 7000 - 208/230 V - 60 Hz Single Phase
$5,987.00
414-SP055.010-9005
Click to view California Proposition 65 warning

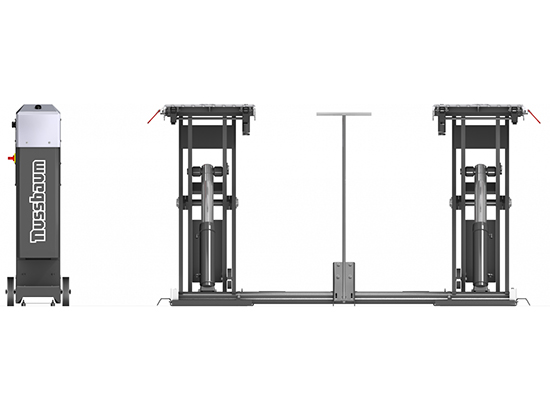

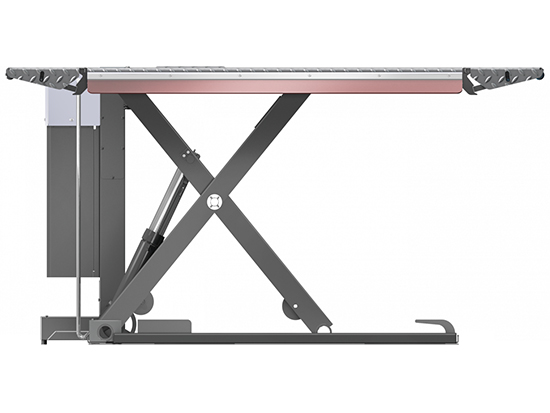

The Sprinter is a hydraulic portable mid-rise lift with a capacity of 7000 pounds and a lifting height of 39". The anti-skid platforms have a length = 55"-79", a width of 17.7", and a clearance of 4.2".
The lift comes with mechanical synchronization and an anti-sag hydraulic system. The standard voltage is 208/230 V 1 Ph 60Hz.
Features
- Lifting height of 39"
- 7000 lb lifting capacity
- 16 second lifting speed
- 360 degree vehicle access
- anti-skid lifting platforms are galvanized with adjustable lengths
- can be installed without screws on almost any flat solid surface
- The mobile set allows the lift to be moved quickly and easily
- Full hydraulic system
- no compressed air required
- High performance power unit
- Compact oil-submerged motor
- Fast and easy setup- pre-assembled and tested
Technical
| Oil fill capacity | 2 | gallons |
| Lifting height | 39 | inch |
| Lifting/lowering time approx. | 16 | s |
| Weight approx. | 1100 | lbs |
| Color | Black | |
| Track length | 55-79 | inch |
| Track width | 17.8 | inch |
| Power supply | 208/230V 60 Hz 1 Ph | V/Hz/A |
| Operating pressure | 240 | bar |
| Dimensions (L x W x H) | 83 x 63 x 18 | inch |
