Vehicle Lifts

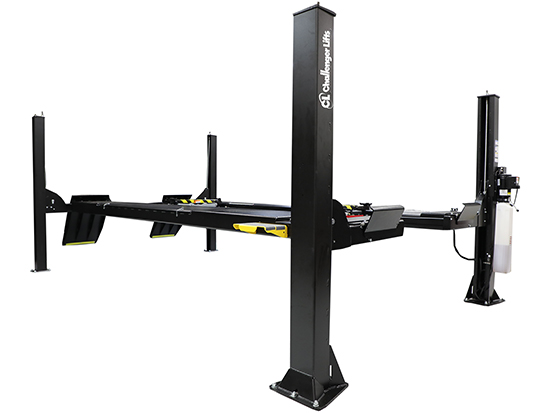

15,000 lbs General Service 4-Post - Open Front

$14,428.00

67-4115EFO

Add to cart

Request a call

Click to see additional Options / Models / Accessories Available
Options




Designed with productivity and safety in mind, our newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor. With several configurations available, you’re sure to find the lift to meet your needs.

Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck, and even medium-sized vans. All while boosting workplace safety with our open front design, assisting technicians moving around a vehicle’s frame.




Features

  • 22" wide runways.
  • Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.
  • Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
  • Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.
  • Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
  • Compatible with the industry’s latest imaging alignment systems.
  • 17 locking positions with improved lock design.



Technical

Drive-over height 7 inch
Load carrying capacity 15,000 lbs
Oil fill capacity 5.5 gallons
Effective height 78 inch
Motor output 2.21 kW
Lifting-piston diameter 3.94 inch
Lifting height, wheel jack 10 inch
Lifting height 71 inch
Lifting/lowering time approx. 85/21 s
Weight approx. 4368 lbs
Color black
Track length 199.3 inch
Track width 22.4 inch
Power supply 230V/60/19 V/Hz/A
Operating pressure 2200 bar
Dimensions (L x W x H) carrier 208/29/56 inch
Dimensions (L x W x H) 250/142/101 inch



Options

67-4115EFX 15,000 lbs General Service 4-Post - Closed Front $13,675.00 Add to cart
67-4115XFO 15,000 lbs General Service 4-Post - Open Front Extended Length $15,369.00 Add to cart
67-4115XFX 15,000 lbs General Service 4-Post - Closed Front Extended Length $14,711.00 Add to cart
