Beissbarth KDS II - for precision in the chassis | with CCD technology and radio data transmission (433 MHz) | with trolley, high-performance PC, 27" monitor and printer | including sensor emergency cable set, 4 precision turntables, precision spoiler adapter and quick-release unit.

Perfectly integrated into driver assistance system calibration (FAS) and headlight testing:

• The space in front of the stage can be used for calibration boards and spotlight setting devices.
• Best in class: Highest measurement accuracy.
• 360° measuring field ensures permanent self-monitoring and adjustment of the system.
• No binding or calibration to a stage enables measurement at any suitable wheel alignment station.
• Radio transmission and battery operation ensure full mobility and enable you to use your own tablets or laptops.
• Intelligent charging concept for mobile solutions either on the trolley or via a wall solution.
• Quality from Germany.
• Smart software for maximum efficiency when measuring and setting.
• Measured value display in real time with target vehicle data displayed.
• Animated setting instructions for third-party vehicles.
• Many languages as standard for employees from all over the world.
• Lane indicator when turned as well as toe and camber indicator when raised for convenient tie rod adjustment.
• ASA network ready.
• Complete measurement without having to lift or move the vehicle.
• Data transmission: 433 MHz

Scope of delivery:

• Sensor with encoder and battery operation (433 MHz frequency).
• Software with quick measurement.
• Chassis data with additional BMW Professional data.

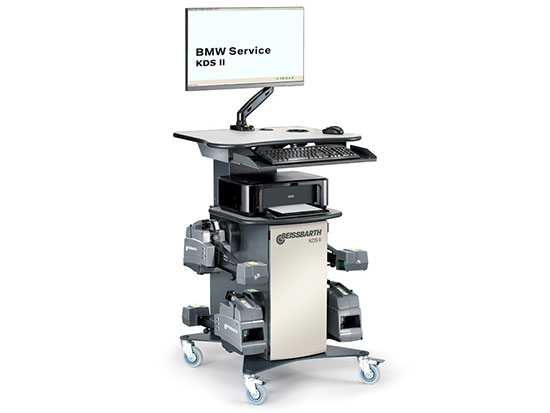

• Trolley with high-performance PC.
• 27" monitor.
• Printer.

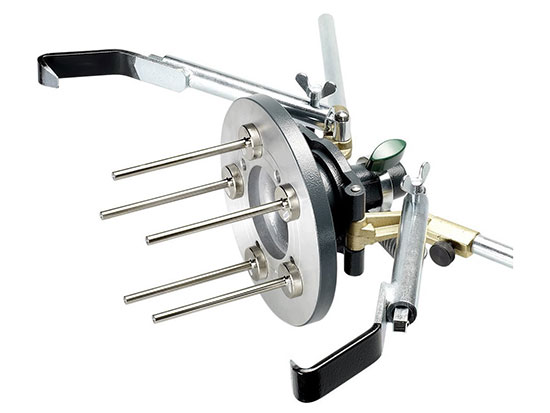

• Quick release unit for BMW with spacer bolts.
• Precision spoiler adapter 50 mm.
• Precision swivel set with electronics (for maximum steering angle) for the front axle.
• Precision rotary stand without electronics for the rear axle.
• Remote control.
• Brake tensioner and steering wheel lock.
• Emergency cable set for sensor.

*Only the BMW quick release holders are approved for the KDS II. The use of other wheel holders with the KDS II is not permitted on BMW Group vehicles.



Features

• Wireless CCD Technology - Most Accurate System Available.
• Space Saving - No Center Post Needed.
• Works on Any Lift.
• Integrates with Q.Das & Bosch ADAS Systems.
• Made in Germany.
• Technician Preferred.



Technical

Weight approx.	300	lbs
Power supply	110v/60Hz/15	V/Hz/A
Dimensions (L x W x H)	24x18x68	inch



Accessories

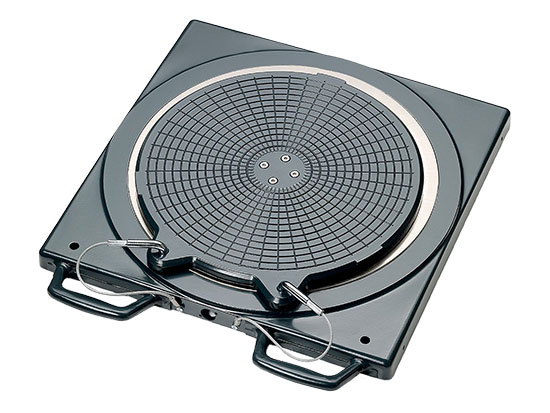

794-1690401013	Beissbarth 1690401013: Electronic Precision Turnplates 50mm (each)	$1,933.00	Add to cart
794-1690401028	Beissbarth 1690401028: Aluminum Precision Turnplates 50mm (each)	$985.00	Add to cart
