Vehicle Lifts
Click to view California Proposition 65 warning

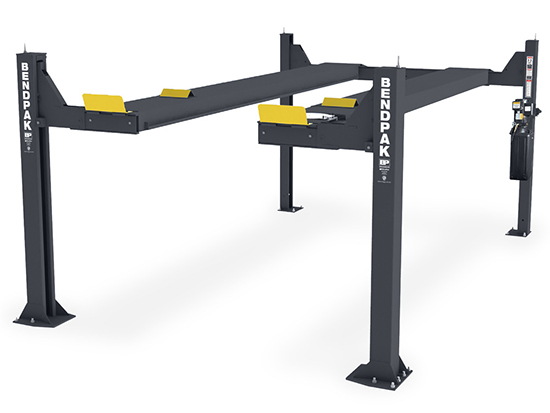

This is where our car lifts really step into the next level of lifting. While the HDS-18E is an entry-level lift in the medium-duty truck category, the HDS-27 is well-suited to take your business well beyond the needs of most private drivers. This garage lift brings you into the realm of construction equipment, commercial flatbed trucks, concrete mixers, garbage trucks, buses, etc. Every BendPak four-post lift, regardless of lift capacity, is made to exacting standards and gets the job done without undue strain or pain on the equipment.
When we rate a truck lift at 27,000 lbs., that means anything at or under that weight limit is a cinch for our lifts to handle. We superbly over-engineer everything, so you can keep the "biggest and baddest" commercial and municipal vehicles up to code and ready for the next great haul. Longer runways accommodate a wide variety of vehicle wheelbases, allowing you to steer massive trucks and buses onto our ramps without damaging your vehicle chassis. We take the time, cost, and effort to bring you the best. Each sheave contained within the runway and cross tubes is a massive 12" in diameter, and the sheave axles, at 4" in diameter, greatly extend the lifespan of your lift by reducing the overall wear put on these parts.
Manufacturing sheave components are even bigger than ones offered by our competition, which ensures superior quality in our product. Additionally, BendPak parts always meet or exceed ALI standards for load bearing and safety. Each of the four, 1/2" diameter, 6 x 25 galvanized lifting cables has a 14,000 lb. breaking strength, so a four-post lift as massive as this has the engineering to keep your vehicles safe at all times, especially during periods of heavy use. They won't rust out or break apart due to bad weather, chemicals or random, floating garage particulate.
Features
- 27,000-Lbs. Lifting Capacity.
- CE Approved and Certified. Meets or Exceeds the Standards Prescribed by European Standard EN 1493.
- Supersized 12" Diameter Cable Sheaves.
- Grease Nipples.
- Integrated Flow Restrictor.
- Spring-Loaded Safety Locks.
- Second Lock System on Constant Guard.
- Single Hydraulic Under-Runway Cylinder.
- Shipping Dimensions - 266"(L) x 27"(W) x 36"(H).
Technical
| Load carrying capacity | 27,000 | lbs |
| Lifting height | 69.5 | inch |
| Lifting/lowering time approx. | 75 | s |
| Weight approx. | 6,109 | lbs |
| Color | Grey | |
| Power supply | 208-230V / 60 Hz / 1 Ph | V/Hz/A |
| Dimensions (L x W x H) | 312.75 x 153.5 x 91.25 | inch |
