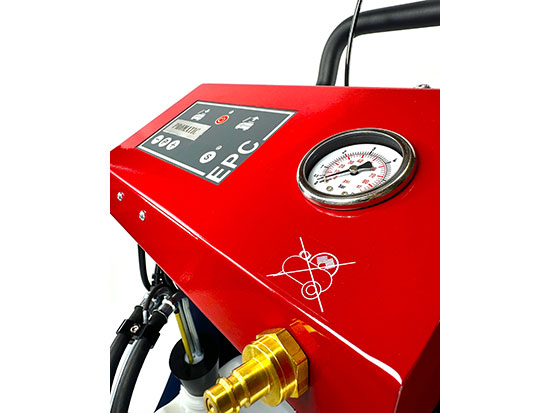

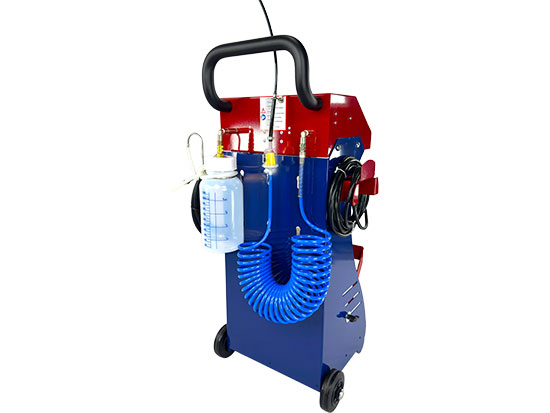

CCT VARIO Pro-Matic 520 is the ultimate solution for modern brake service. Designed for today’s high-volume repair shops and fleet maintenance facilities, it delivers unmatched precision, reliability, and speed in brake system maintenance.

NOTE: Product will be available for shipping in March 2026.



Features

• EPC Smart Pressure Control → Proprietary, processor-driven technology that maintains constant working pressure and automatically adjusts flow the moment a bleeder valve is opened – ensuring flawless, air-free results every time.
• Integrated Electro-Hydraulic Extraction → Removes old fluid directly from the reservoir (no pumping waste through the entire system).
• Automatic Safety Reset → After every bleeding cycle, the unit resets back to 14.5 PSI (1 bar). This prevents reservoir damage on older vehicles and keeps the system safe when multiple technicians are using the machine – protecting both cars and shop bud.
• Self-Bleeding Function → No mess, no wasted fluid after a fluid change or if air enters the device.
• Pulsating Fluid Flow → Eliminates every trace of trapped air contamination.
• Dual Pump Technology → Two independent circuits prevent mixing old & new fluid.
• Auto Shut-Off → Prevents air intrusion when fluid runs low.
• Heavy-Duty Build → Engineered for continuous workshop operation.
• Adjustable Working Pressure → Up to 52 PSI for maximum flexibility across vehicle types.
• High Output Capacity → More than 15.8 gallons per hour.
• 2-in-1 Fluid Catch Bottle → Use for both suction and bleeding functions.



Technical

Dimensions (L x W x H)	29 x 18 x 16	inch
Power supply	12v/50-60/6A	V/Hz/A
Frequency	50-60	Hz
Weight approx.	53	lbs
Vaccum or Pressure Bleed	Pressure
Motor output	0.02-0.08	kW
Power Connection	110-120V	V
