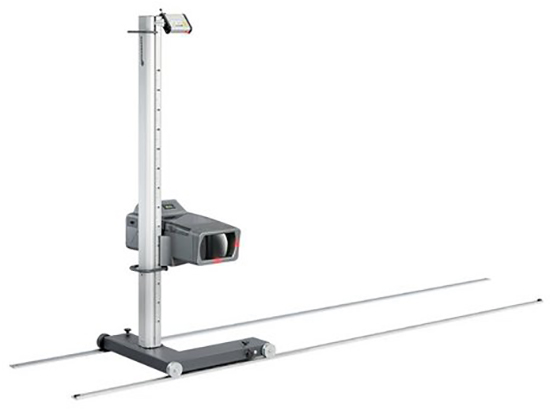

Beissbarth MLD 100 - Analog headlight testing device
$4,725.00
794-1 692 104 343
ProQuip Solutions LLC
German Road Traffic Type-Approval Law StVZO 29 general-inspection headlight-test directive: MLD 100 can be calibrated according to the legal requirements.
- TÜV certificate in line with StVZO 50 - TPN 100127181: TÜV-certified by prototype technical release examination in accordance with the directives for testing headlight adjustment/test equipment (German Road Traffic Type-Approval Law StVZO §50 paragraph 5).
- The alignment (leveling) of the MLD 100 on the testing bay corresponds to the latest requirements.
- Two-dimensional spirit level for horizontal leveling of the optical box.
- Levelable 3-wheel base system with wheels for the rail system.
- Levelable rail system for above and inground installation (3 m) as mandatory accessories.
High-End headlight testing device MLD 100: with the approved mechanics of the digital headlamp tester.
- Cross- and alignment laser with turnable column for precise positioning.
- For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen).
- All types of vehicles (passenger cars, and trucks).
- All types of headlights (main headlights, fog lamps, auxiliary lamps).
- Operating panel can be rotated by 180° for different areas of application (e.g. for general inspections or for the adjustment at the workshop).
- Measuring height (optical center): 25 - 150 cm.
- Intensity measurement: Luxmeter with digital display.
- Prepared for rail system usage - no overhang of the light box.
- Inclination scale readable from above Scope of deliveries:
- Optical box MLD 100 - RAL7040 - analogue
- Column
- 3-wheel base with rail wheels
- Laser visor with handle and wide laser diode
- Dust cover
- Certificate: CE, TÜV
