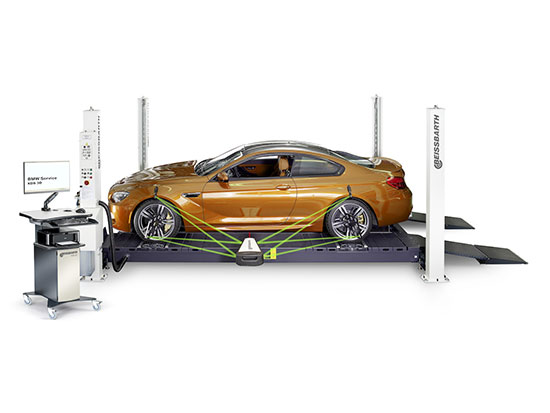

Wheel Alignment with 3D technology - High speed, high precision and easy to use | WLAN version | with cabinet, HighPerformance PC, 27" monitor and printer | incl. lift adapter, turntable Precision for front and rear axle, ride height markers and OEM magnetic clamps with longer magnets.

High measuring accuracy and precision for top results.

• The combination of the Beissbarth stereo camera measurement system with active reference system and sophisticated software ensures the accurate determination of measured values.

Perfectly integrated into ADAS calibration and head light testing:

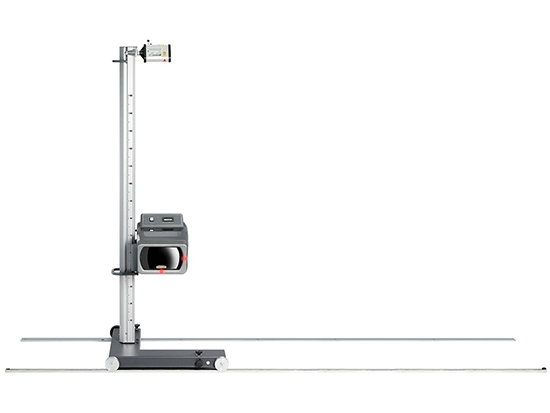

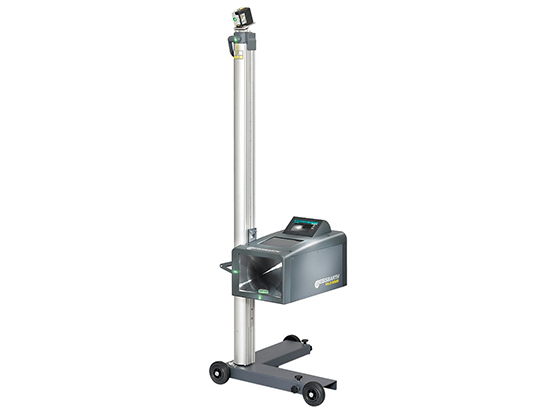

• The space in front of the lift can be used for the ADAS calibration jig and head light tester.

Highly repeatable initial measurement.

• Rolling or driving run-out compensation at ground level.
• Three selectable measurement routines: program-driven, quick measurement, choice-free access to single-value check.

Sophisticated software for maximum measurement and adjustment efficiency.

• Real-time display of measured values combined with vehicle specs.
• Visually animated adjustment instructions for third-party vehicles.
• Several languages as standard for staff from all over the world.
• ASA network ready.

Easy and live ride height measurement with easy-to-attach ride height targets.

• Ride height measured automatically.
• Ride height measured permanently during alignment.
• Automatic adjustment of vehicle specs according to ride height information.
• Sensor heads can be easily detached from the lift when not in use to clear up space.
• Beissbarth DualView camera system for ultimate control, especially of complex chassis.
• No fixed position for targets on the vehicle eliminates room for error.
• Plug & play: no calibration required for installation or for exchanging targets.
• Extensive Beissbarth vehicle database including alignment helps directly from the OEMs.
• Quality Made in Germany.
• Wifi version.

Scope of delivery:

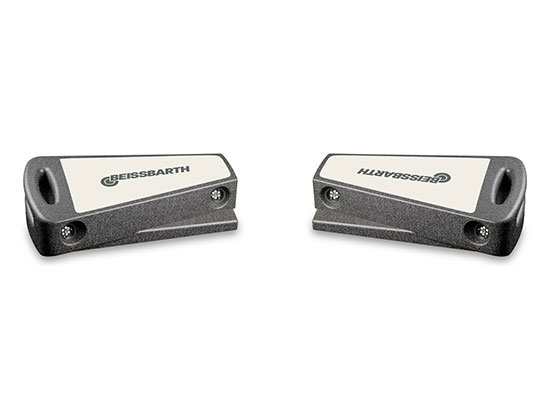

• Sensor head with DualView camera technology.
• WLAN/Bluetooth communication box.

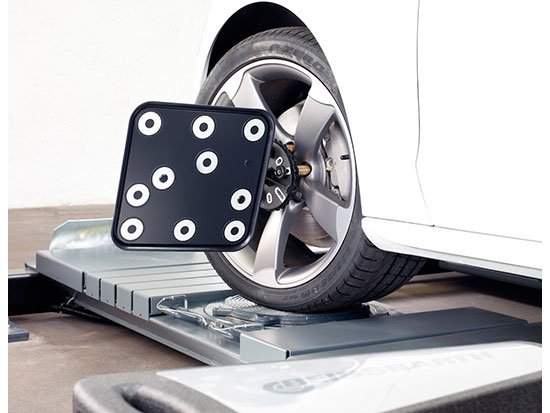

• Target boards.
• Ride height markers universal with transportation case.
• Ride height markers for Mini / Z3 / Z4.
• Vehicle specs database with additional BMW Professional data.
• Cabinet.
• High Performance PC.
• 27" Monitor.
• Printer.

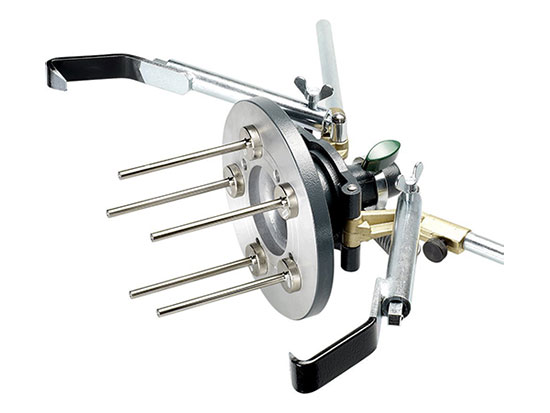

• OEM magnetic clamps with longer magnets.
• Lift adapter.
• Precision Turntable for front and rear axle.
• Remote control.
• Brake pedal depressor and steering wheel holder.
• Cable set 7.5m.

*The KDS 3D only allows the use of magnetic clamps. The use of other wheel clamp solutions in combination with the KDS 3D is not approved by the BMW Group.



Features

• DualView camera technology.
• No Calibration Needed.
• Quality Made in Germany.
• System Mounts on Lift - More room In front of Vehicle.
• Magnetic Wheel Adapters.



Technical

Dimensions (L x W x H)

24x18x68

inch
