German Road Traffic Type-Approval Law StVZO § 29 general-inspection headlight-test directive: MLD 9000 can be calibrated according to the legal requirements.

• TÜV certificate in line with StVZO § 50 - TPN 10014 8827: MLD 9000 is TÜV-certified by prototype technical release examination in accordance with the directives for testing headlight adjustment/test equipment (German Road Traffic Type-Approval Law StVZO §50 paragraph 5).
• Two-dimensional spirit level for horizontal leveling of the optical box.
• Levelable 3-Wheel base system fitting for all common rail systems.

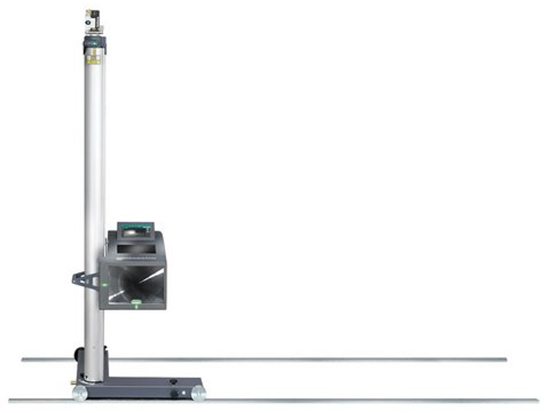

• Digital headlight testing with MLD 9000: intelligent, fast and precise.
• The MLD 9000 (1692104346) supports leveling accuracy through software correction via a built-in inclinometer.
• Precise green alignment lasers for accurate alignment with the vehicle. Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range.
• Cross laser function for precise positioning in the center of the headlight.
• For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen) and glare-free high-beam systems (Dynamic Light Assist - DLA, Matrix1, HD-Matrix2,)
• All types of vehicles (passenger cars, and trucks)
• All types of headlights (main headlights, fog lamps, auxiliary lamps).
• High-resolution (5 megapixel) CMOS camera for real-time digital image processing.
• Measurement results in real time optimized with live images.
• Comparison between measured and limit values and unambiguous red/green evaluation.
• Saving and archiving of the measured values in database.
• Reporting of the measurement result possible via PDF.
• Time-saving quick measurement functionality.
• Precise definition of the cut-off line without disrupting blue fringe.
• Workshop-proof touch-screen display (7").
• Continuously swiveling display for a variety of applications (such as the MOT for testing or in the workshop for adjustment) and for adapting to the local lighting conditions.
• Intuitive and simple user guidance.
• Visual and acoustic signals support the measurement procedure.
• Independent operation thanks to battery.
• Measured values: Horizontal and vertical deviation (pitch angle), intensity, roll angle, yaw angle.
• Ports: LAN, USB, RS232.
• Live firmware update possible.

Highest mechanical precision and long-life cycle (suitable for future legal requirements):

• A new developed torsion-free and specially hardened aluminum column.
• Easy to use, robust sliding system for precise height adjustment and comfortable working.
• Robust and durable counter weight system with toothed belt.
• Determination of the headlight installation height via adjustable, specially made aluminum scale or use of the optional height measuring sensor.
• Optional: fine adjustment of the column with 1 angle minute accuracy.

Networking: Test results via WLAN with quick and aptly arranged results on the PC.

• Save measurement printouts in a network folder.
• Integration with Bosch Connected Repair (fees apply for activation).

Certificate: CE, TÜV, EMC, FCC, FDA



Accessories

794-1 690 381 124	P-Assist laser module for symmetry alignment	$2,726.00	Add to cart
794-1 692 105 080	Rail kit 3 m	$1,567.00	Add to cart
794-1 692 105 112	Extension kit for rail kit | 1.5 m	$912.00	Add to cart
794-1 692 105 201	Cover for MLD 9000	$205.00	Add to cart
794-1 692 105 278	Height-measuring sensor for MLD 9000	$444.00	Add to cart
