Features

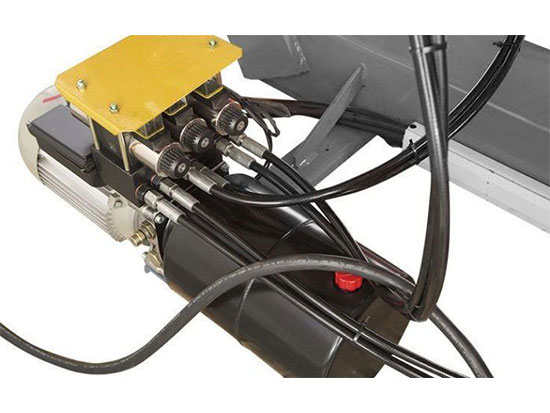

• Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
• Self-centering hydraulic clamping chuck.
• Heavy, tapered roller bearings and a dual direction hydraulic motor provide smooth torque.

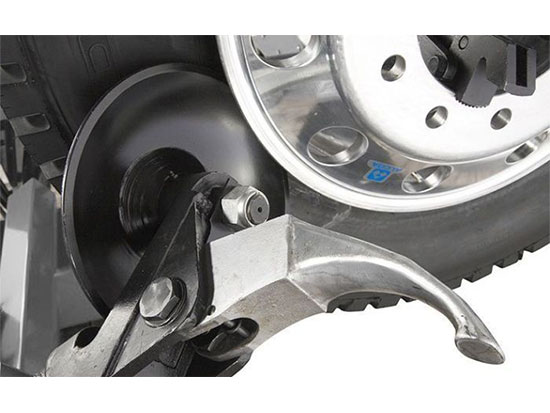

• Quick positioning and locking mount / demount arm.
• Hydraulic sled carriage for positioning, bead loosening, mounting and de-mounting procedures.
• Single piece frame for superior rigidity.
• Hydraulically operated spreader jaws ensure secure clamping of virtually all rims and off-road style wheels.
• Massive chuck spindle handles the heaviest loads.
• Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and lowers with simple operator controls.
• Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels.
• Simple design is easy to use.
• Tire lubrication comes standard.



Technical

Dimensions (L x W x H)	63 x 80 x 38	inch
Power supply	208-230V / 60Hz / 1Ph	V/Hz/A
Color	Gunmetal Grey
Rim diameter	14 – 26	inch
Motor output	3 HP	kW
Tire width	31	inch
Tire diameter	63	inch
